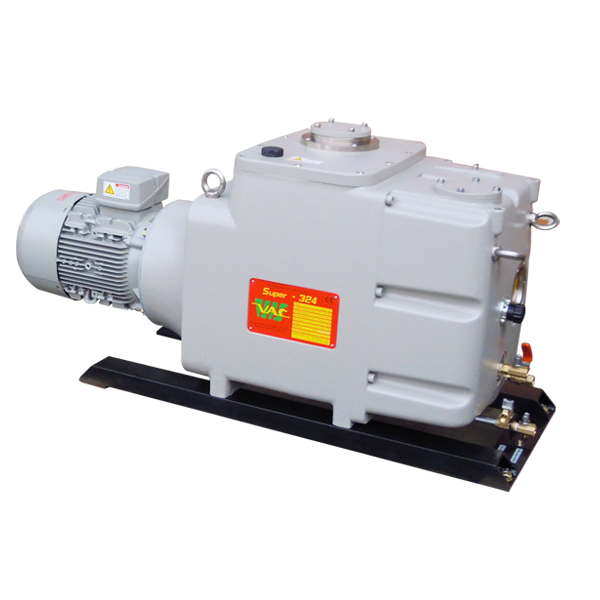

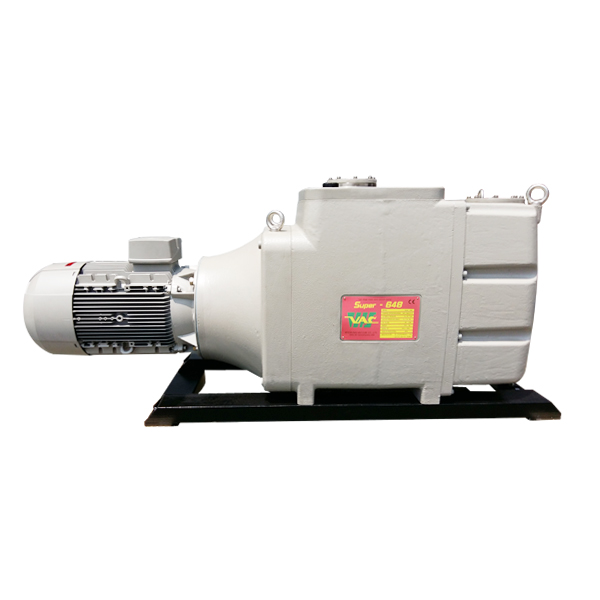

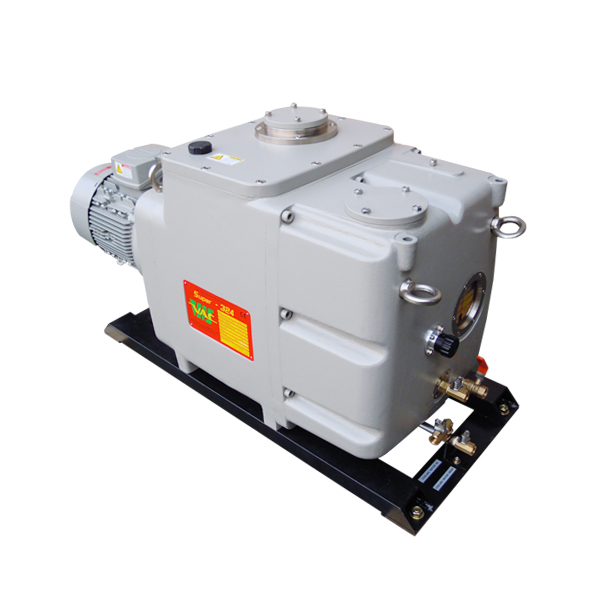

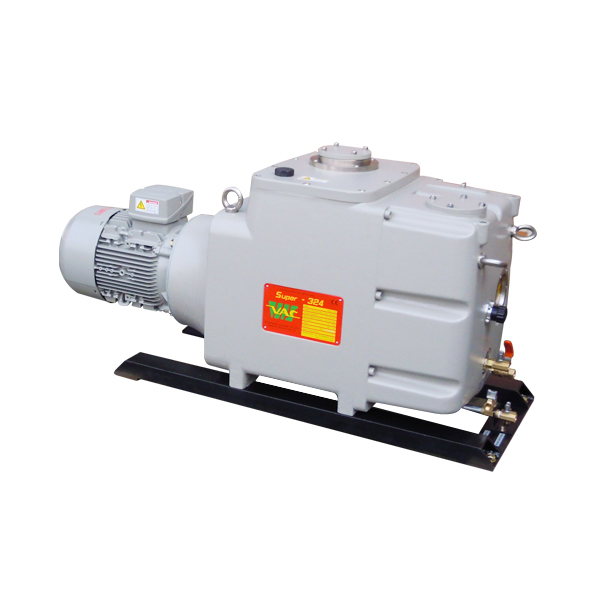

SUPER – 180, 216, 324, 648 (m3/h)

Sup01
Sup01
Sup02
Sup03
Sup04

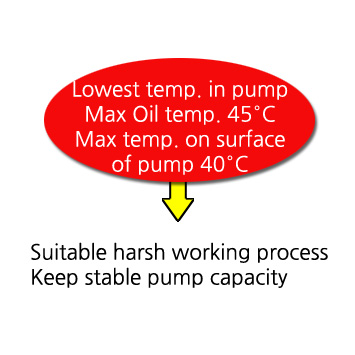

SUPER Text En
Sup01 Sup02 Sup03 Sup04 SUPER Text En

Design Features

  1. Excellent ultimate vacuum and pumping speed
  2. Improved anti-suckback system to protect the pump in the event sudden stop
  3. International standard flange(ISO flange)
  4. Low noise level and low vibration level
  5. Constant pressured oil circulating system
  6. Convenient gas ballast valve control
  7. Simple repairing and maintenance
  8. Perfect structure for water cooling system
  9. Oil mist trap is applicable(optional)

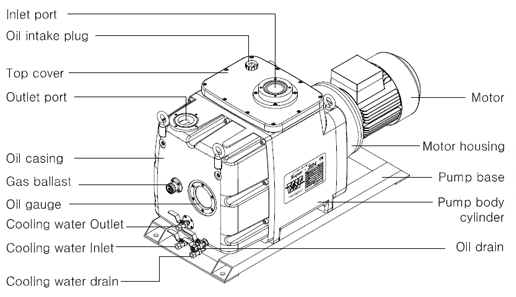

External Pump Sketch

super324_01

Technical Data

Description Unit SUPER 180 SUPER 216 SUPER 324 SUPER 648
Displacement Speed 60Hz m3/h 180 216 324 648
L/min 3000 3600 5400 10800
50Hz m3/h 150 180 270 540
L/min 2500 3000 4500 9000
UltimatePressure With gas ballast Torr 5×10-3
Without gas ballast 5×10-4
Inlet Port ISO 63 ISO 63 ISO 63 ISO 100
Outlet Port ISO 40 ISO 40 ISO 63 ISO 100
Motor Power(50Hz / 60Hz) kW 4.0 4.0/5.5 5.5/7.5 11 / 15
Rotational speed of Pump 60Hz R.P.M 1800 1200 1200 1200
50Hz 1500 1000 1000 1000
Oil Filling Liter 12 14 18 36
Cooling water(less than 20°C) L/min 3 3 4 5
Weight kg 220 460 580 910

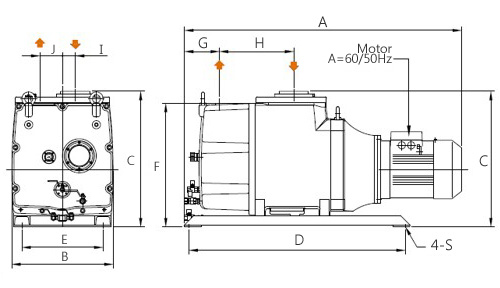

Outside Dimension

super324_02
MODEL A B C D E F G H I J S
SUPER 180 1027 / 1027 320 464 750 230 401 160 240 35 80 14
SUPER 216 1170 / 1170 380 524 880 285 461 156 310 55 80 18
SUPER 324 1385 / 1251 450 600 960 360 547 177 330 58 100 18
SUPER 648 1660 / 1580 550 706 1200 430 645 205 400 75 120 18

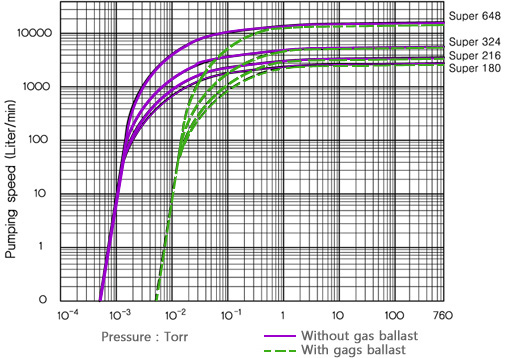

Pumping Speed Curve

Spuer_pumping_curve

Dimension of ISO flange

(unit:mm)

Standard a b n d
ISO40 100 80 4 M8
ISO63 130 110 4 M8
ISO100 165 145 8 M8
super324_04
