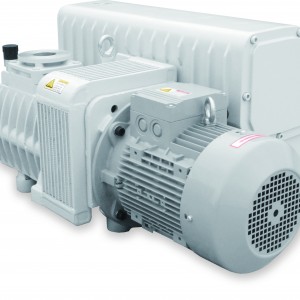

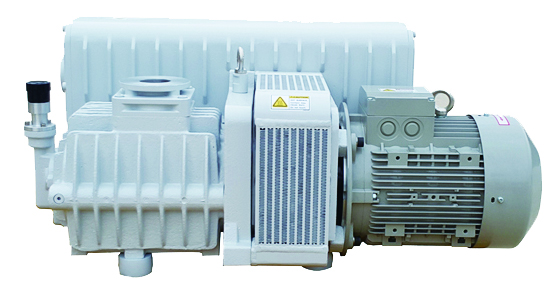

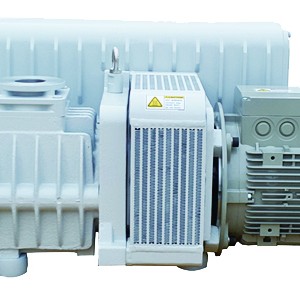

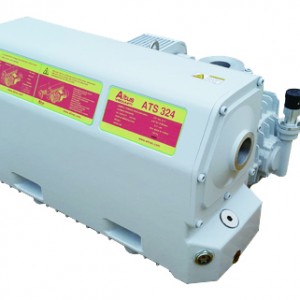

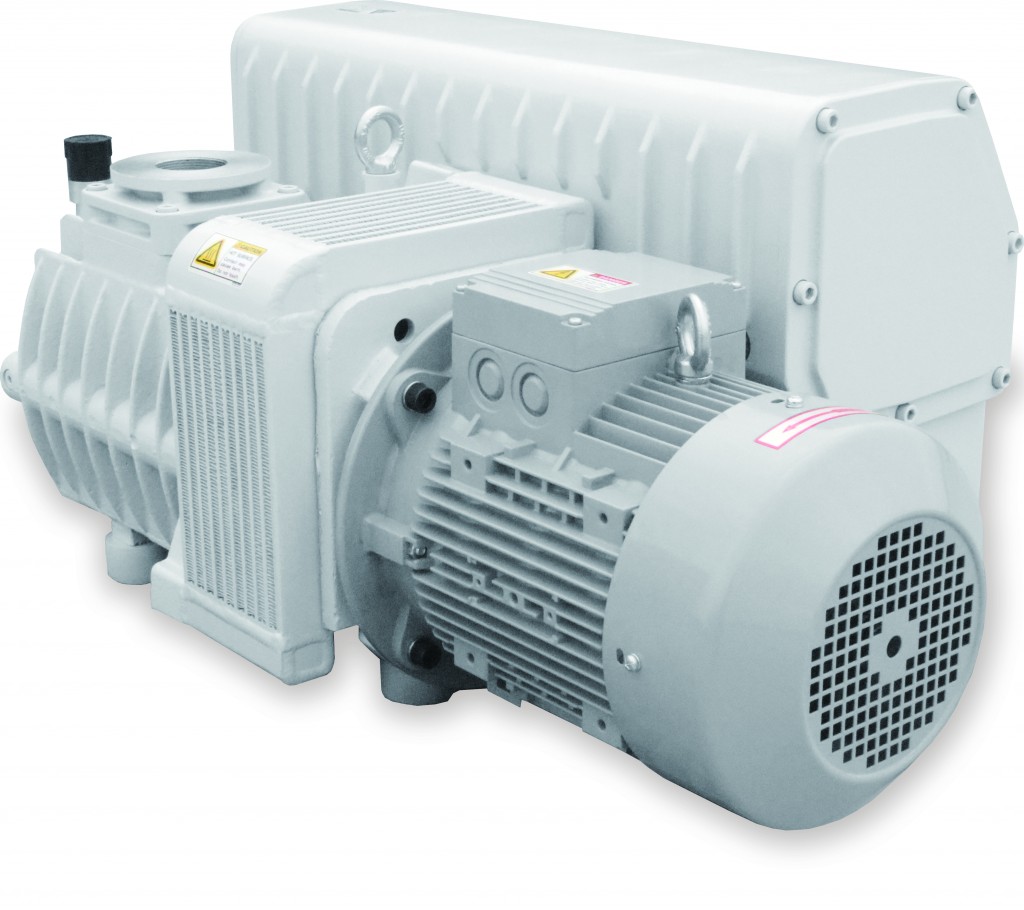

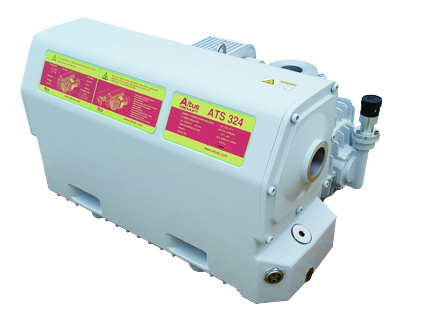

ATS Series (80~324m3/h)

Design Operation Principle and Strong points

  1. ATS Series is Single-stage oil sealed rotary vane vacuum pump. It is new concept out of conventional design to satisfy customer’s needs.
  2.  The oil temperature of the pump is low due to efficient air cooling system with radiator and it is ideal for harsh applications.
  3. The low oil temperature guarantees longer life time of pump and more stable performance.
  4. Large oil volume for long oil lifetime.
  5. Integrated oil recovery system to minimize oil loss.
  6. The anti-suckback valve located at the inlet port protects the vacuum chamber at the time of sudden pump stop.
  7. Integrated oil mist filter at the outlet port of the pump to prevent pollution.
  8. Big cross-sectional area of oil mist filter for long life time of the filter.
  9. The oil gauge, oil inlet, and oil outlet is located at same side for easier maintenance.
  10. The pump is specially designed to have optimum performance from the low to medium vacuum.
  11. The pump are capable of continuative operation under ambient pressure.
  12.  Low noise level.

MVP Small Series (6~90m3/h)

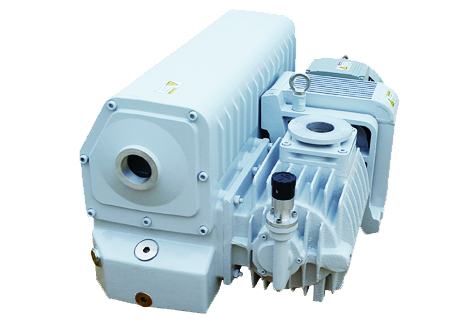

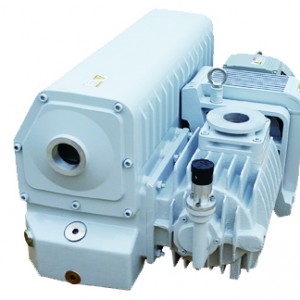

Small Mvp 01
Small Mvp 01
Small Mvp 02
Small Mvp 03
Small Mvp 04
Small Mvp 01 Small Mvp 02 Small Mvp 03 Small Mvp 04

Design Features

  1. Excellent ultimate vacuum and pumping speed by suing high performance new materials.
  2. Improved oil anti-suckback system to protect the vacuum system in the event of sudden stop.
  3. Occupying international standard clamp and flange at inlet and outlet port.
  4. Low noise and vibration.
  5. Occupying strong and constant pressured oil circulating system to protect the pump.
  6. Occupying convenient gas ballast valve control enabling open and shut-down of gas ballast valve easily while operating.
  7. Simple maintenance and oil replacement.
  8. Simple repair without special tools.

External Pump Sketch

Small-Series_04

Simplified Pump Structure Sketch

Small-Series_01

Technical Data

Description Unit MVP6 MVP12 MVP24 MVP36 MVP60 MVP90
Displacement speed 60HZ m3/h 6 12 24 36 60 90
L/min 100 200 400 600 1000 1500
50HZ m3/h 5 10 20 30 50 75
L/min 80 170 335 500 830 1250
Ultimate pressure Gas ballast C torr 5 x 10-4
Gas ballast I 5 x 10-3
Gas ballast II 5 x 10-2
Water vapour tolerance torr 40 40 25 25 40 40
Oil filling L 1.1 1.2 2.0 2.3 4.5 6.5
Inlet port DN 25KF 40KF
Outlet port DN 25KF 40KF
Motor power kW 0.4 0.75 1.5 2.2
Rotational speed of pump 60Hz R.P.M 1750
50Hz R.P.M 1450
Noise level(without gas ballast) dB 50 50 52 52 56 56
Weight kg 21 22.5 38 41 68 84

Pumping Speed Curve

Small-Series_05

Outside Dimension (Model : MVP 6, 12, 24, 36)

Small-Series_06

(unit:mm)

Model A B C D E F G H I J K N S M L
MVP6 170 120 261 24 40 247 45 130 253 94 240 244 Ø9 210 454
MVP12 170 120 261 24 40 247 45 155 253 94 240 269 Ø9 210 479
MVP24 210 140 297 40 50 282 55 180 288 147 310 309 Ø12 234 543
MVP36 210 140 297 40 50 282 58 210 288 147 310 342 Ø12 234 576

Outside Dimension Model : MVP60, MVP90

Small-Series_07

(unit:mm)

Model A B C D E F G H I J K N S M L
MVP60 250 185 387 30 50 368 80 255 370 305 550 428 Ø14 281 709
MVP90 280 185 441 30 50 412 85 295 415 355 600 479 Ø14 312 791
