MVP Small Series (6~90m3/h)

Design Operation Principle

  • MVP Series is two-stage oil sealed rotary vane vacuum pump. It is new concept out of conventional design to satisfy customer’s needs.
  • The structure of the pump
    It consists of pump housing, oil casing, motor housing, pump base and pump module. It occupies oil anti-suckback valve and gas ballast for protecting pump and vacuum system.
  • Operating Principle
    The pump and motor are connected by flexible coupling. As the rotor rotates two vanes, placed in rotor vane groove, turn making contact with the internal surface of the cylinder due to centrifugal force.
    The inhaled gas is trapped between two vanes as the rotating vane passes through the inlet passage and this trapped gas is compressed as it rotates toward exhaust valve and eventually exhaust through valve. The vacuum oil is supplied to the moving parts for lubrication and tight sealing.

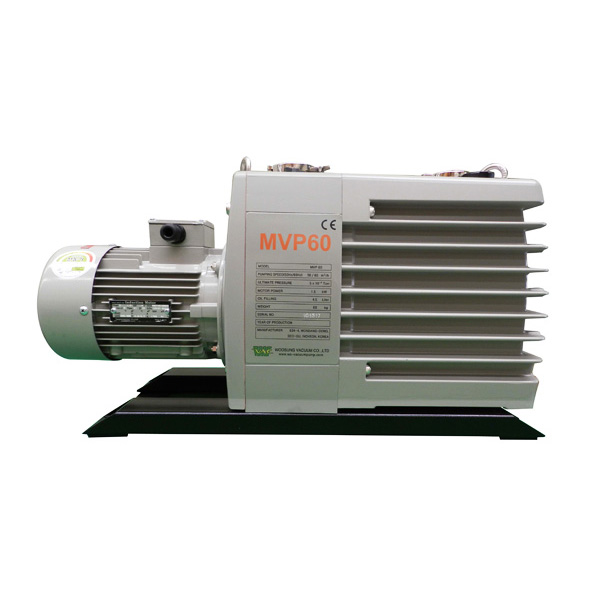

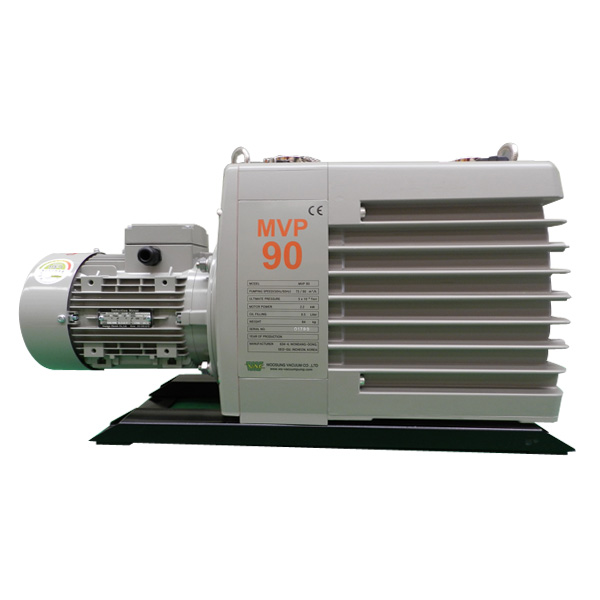

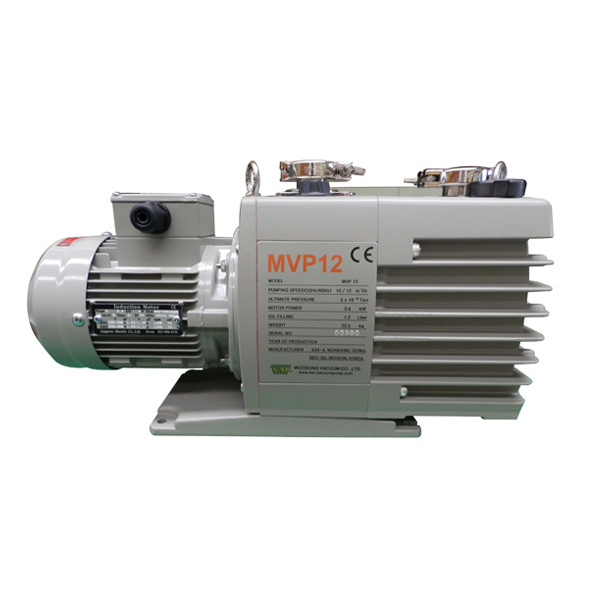

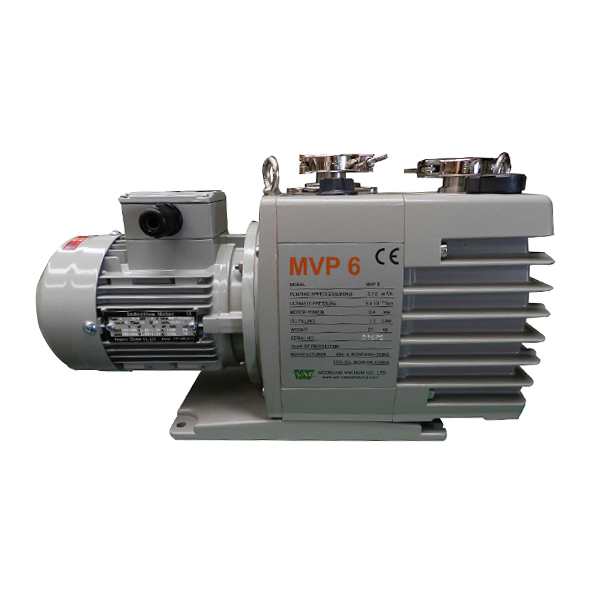

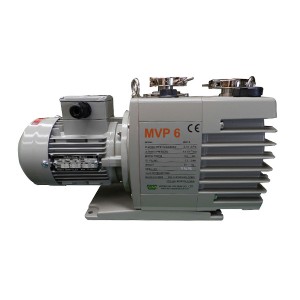

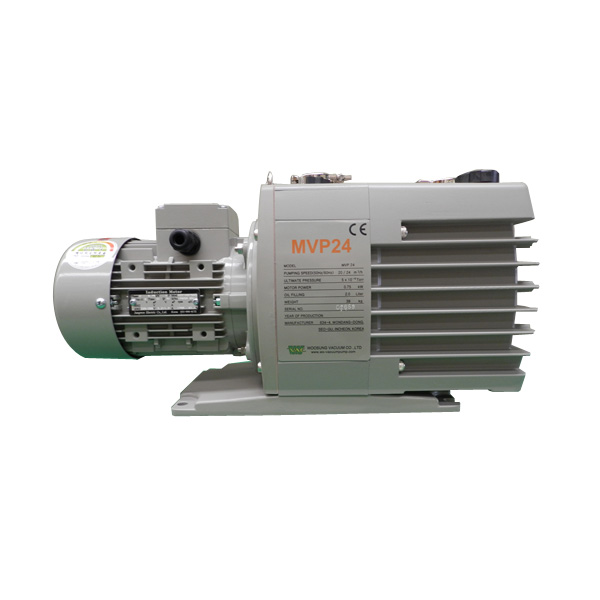

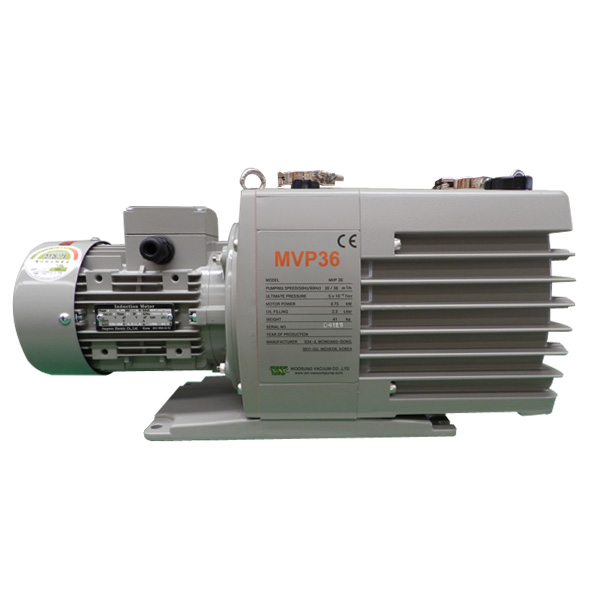

MVP Small Series (6~90m3/h)

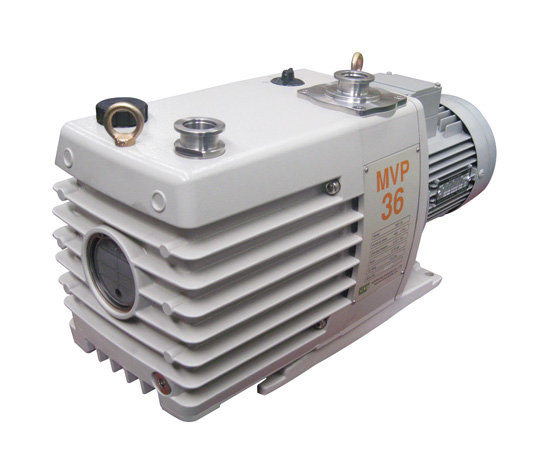

Small Mvp 01
Small Mvp 01

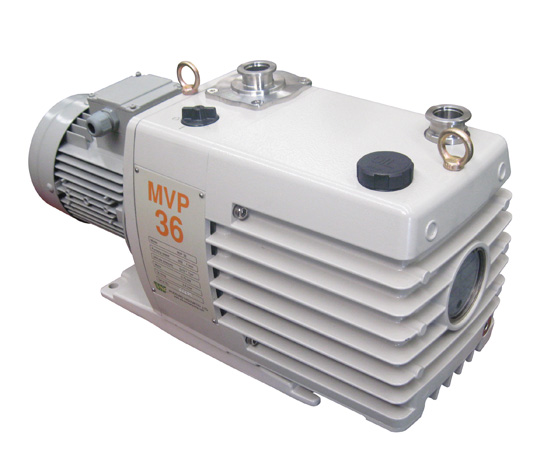

Small Mvp 02

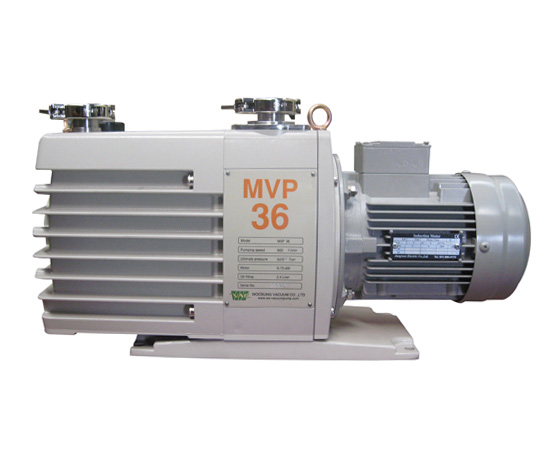

Small Mvp 03

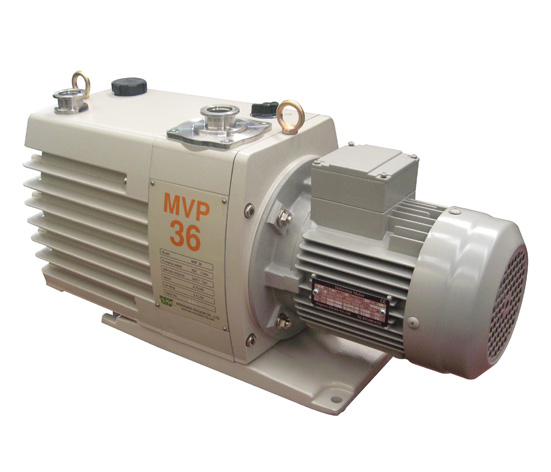

Small Mvp 04
Small Mvp 01 Small Mvp 02 Small Mvp 03 Small Mvp 04

Design Features

  1. Excellent ultimate vacuum and pumping speed by suing high performance new materials.
  2. Improved oil anti-suckback system to protect the vacuum system in the event of sudden stop.
  3. Occupying international standard clamp and flange at inlet and outlet port.
  4. Low noise and vibration.
  5. Occupying strong and constant pressured oil circulating system to protect the pump.
  6. Occupying convenient gas ballast valve control enabling open and shut-down of gas ballast valve easily while operating.
  7. Simple maintenance and oil replacement.
  8. Simple repair without special tools.

External Pump Sketch

Small-Series_04

Simplified Pump Structure Sketch

Small-Series_01

Technical Data

Description Unit MVP6 MVP12 MVP24 MVP36 MVP60 MVP90
Displacement speed 60HZ m3/h 6 12 24 36 60 90
L/min 100 200 400 600 1000 1500
50HZ m3/h 5 10 20 30 50 75
L/min 80 170 335 500 830 1250
Ultimate pressure Gas ballast C torr 5 x 10-4
Gas ballast I 5 x 10-3
Gas ballast II 5 x 10-2
Water vapour tolerance torr 40 40 25 25 40 40
Oil filling L 1.1 1.2 2.0 2.3 4.5 6.5
Inlet port DN 25KF 40KF
Outlet port DN 25KF 40KF
Motor power kW 0.4 0.75 1.5 2.2
Rotational speed of pump 60Hz R.P.M 1750
50Hz R.P.M 1450
Noise level(without gas ballast) dB 50 50 52 52 56 56
Weight kg 21 22.5 38 41 68 84

Pumping Speed Curve

Small-Series_05

Outside Dimension (Model : MVP 6, 12, 24, 36)

Small-Series_06

(unit:mm)

Model A B C D E F G H I J K N S M L
MVP6 170 120 261 24 40 247 45 130 253 94 240 244 Ø9 210 454
MVP12 170 120 261 24 40 247 45 155 253 94 240 269 Ø9 210 479
MVP24 210 140 297 40 50 282 55 180 288 147 310 309 Ø12 234 543
MVP36 210 140 297 40 50 282 58 210 288 147 310 342 Ø12 234 576

Outside Dimension Model : MVP60, MVP90

Small-Series_07

(unit:mm)

Model A B C D E F G H I J K N S M L
MVP60 250 185 387 30 50 368 80 255 370 305 550 428 Ø14 281 709
MVP90 280 185 441 30 50 412 85 295 415 355 600 479 Ø14 312 791
